Chevron Sign Flashing LED Ring – Right

Part Number: M75-Rxxxx-BA1R

Summary

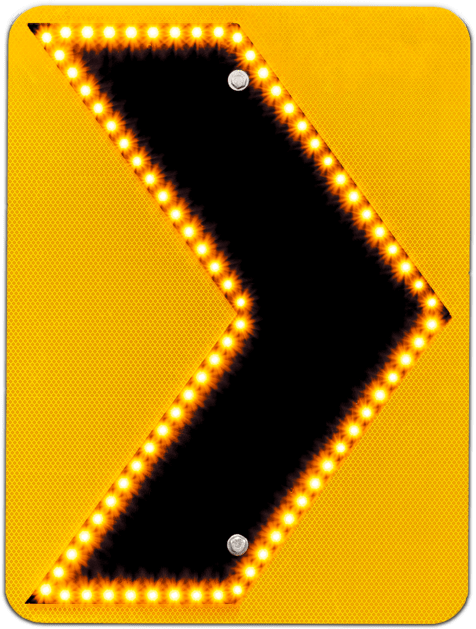

The Chevron Sign Flashing LED Ring – Right enhances standard right chevron warning signs by tracing the symbol with high-intensity amber LEDs. Intended for use on sharp curves, ramps, and horizontal alignment changes, this LED ring provides an unmistakable dynamic cue to drivers, improving lane tracking and reducing run-off-road crashes. The ring retrofits to MUTCD-compliant chevron signs, operates from a 12 VDC TraffiCalm controller, and is fully sealed for long-life field operation.

Product Options

All sizes are right-chevron amber LED rings:

• M75-R1824-BA1R – 18" x 24" Chevron Right Amber
• M75-R2430-BA1R – 24" x 30" Chevron Right Amber
• M75-R3036-BA1R – 30" x 36" Chevron Right Amber
• M75-R3648-BA1R – 36" x 48" Chevron Right Amber

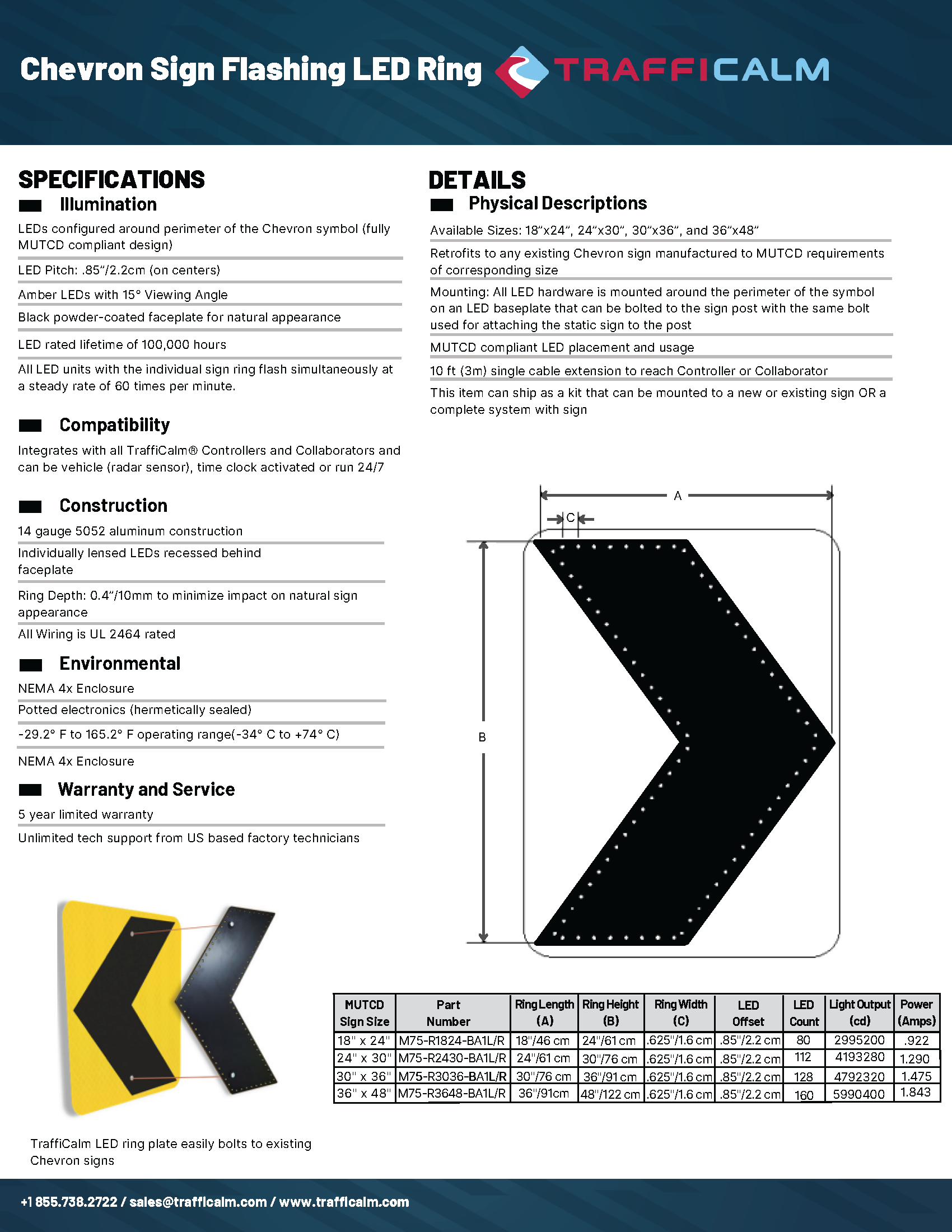

Specifications

Available Sizes

• 18" x 24"
• 24" x 30"
• 30" x 36"
• 36" x 48"

Illumination

• LEDs configured around the perimeter of the Chevron symbol (right orientation)
• Amber LEDs with 15° viewing angle
• LED pitch: 0.85" (2.2 cm) on centers
• LED rated lifetime: 100,000 hours
• All LEDs within a single ring flash simultaneously at approximately 60 flashes per minute

LED Performance and Electrical

• Operating voltage: 12 VDC (supplied from TraffiCalm controller or collaborator)
• 18" x 24": 80 LEDs, approximate light output 2,995,200 cd, current draw 0.922 A
• 24" x 30": 112 LEDs, approximate light output 4,193,280 cd, current draw 1.290 A
• 30" x 36": 128 LEDs, approximate light output 4,792,320 cd, current draw 1.475 A
• 36" x 48": 160 LEDs, approximate light output 5,990,400 cd, current draw 1.843 A

Compatibility

• Retrofits to any right-chevron sign manufactured to MUTCD requirements for the corresponding size
• Integrates with all TraffiCalm controllers and collaborators
• Supports radar-based activation, time-clock activation, or 24/7 flashing when configured through the controller

Construction

• 14-gauge 5052 aluminum construction
• Black powder-coated faceplate for natural sign appearance
• Individually lensed LEDs recessed behind faceplate
• All electronics and LEDs fully epoxy-potted and environmentally sealed
• All wiring UL 2464 rated

Physical Descriptions

• Ring depth: 0.4" (10 mm)
• Ring width (C): 0.625" (1.6 cm)
• LED offset from border: 0.85" (2.2 cm)
• Ring length (A) and height (B):
  • 18" x 24": 18" (46 cm) by 24" (61 cm)
  • 24" x 30": 24" (61 cm) by 30" (76 cm)
  • 30" x 36": 30" (76 cm) by 36" (91 cm)
  • 36" x 48": 36" (91 cm) by 48" (122 cm)

Mounting

• LED hardware mounted around the perimeter of the Chevron symbol on an LED baseplate
• Baseplate bolts to the sign post with the same hardware used for the static sign
• 10 ft (3 m) single cable extension to reach TraffiCalm controller or collaborator
• Available as a retrofit kit or as a complete sign-plus-ring assembly

Environmental

• NEMA 4X enclosure rating
• Operating temperature range: −29.2°F to +165.2°F (−34°C to +74°C)

Warranty

• 5-year limited warranty on LED ring and electronics
• Unlimited technical support from U.S.-based factory technicians

Why Choose the Chevron Sign Flashing LED Ring – Right?

• Provides a bright, dynamic right-chevron outline for safer curve navigation
• High LED count and focused optics deliver strong visual guidance at higher speeds
• Retrofit-friendly design reduces project cost by reusing existing static signs
• Rugged potted electronics and NEMA 4X construction withstand harsh roadside conditions
• Easily integrated into TraffiCalm sequential chevron and curve warning systems
• Manufactured in the USA in an ISO 9001:2015 certified facility
• Build America / Buy America compliant
