Post Top Beacon – Poly Housing – Amber
Poly post-top beacon: 12" amber LED, UV-resistant, lightweight design for critical warning applications
Updated
by Dylan Solberg
Part Numbers: M75-BCNPT-SBP1, M75-BCNPT-SYP1
M75-BCNPT-SBP1
M75-BCNPT-SYP1
Summary

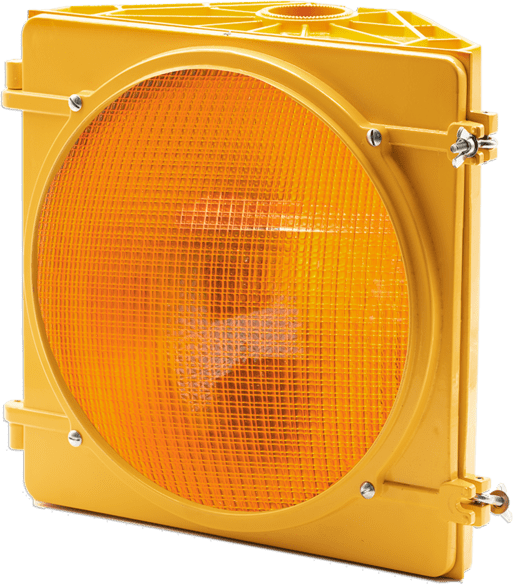

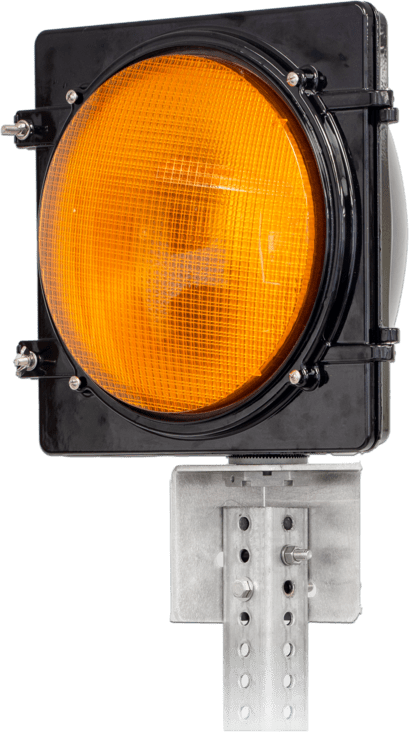

This post-top beacon configuration features a molded polycarbonate housing with a 12" amber LED unit. The poly housing provides impact resistance, corrosion immunity, and lower weight for easier installation and servicing.
Product Options
- M75-BCNPT-SBP1: Black Poly Housing, 12" Amber Ball
- M75-BCNPT-SYP1: Yellow Poly Housing, 12" Amber Ball
Specifications
LED Illumination
- 12" amber LED light
- Auto-dimming
- 100,000-hour LED lifespan
- MUTCD compliant
- ITE VTCSH compliant
Electrical
- Operating voltage: 10–28 VDC
- Power usage: 10W
Housing
- Molded polycarbonate construction
- UV-resistant
- Lightweight compared to aluminum
- Does not include visor
- Does not include back plate
Mounting
- Designed for mounting on top of round poles
- Fixed base configuration
Environmental
- IP-rated water-resistance
- Temperature range: −29.2°F to +165.2°F (−34°C to +74°C)
Warranty
- 5-year limited warranty
- Unlimited technical support
Why Choose Post Top Poly – Amber?
- Lightweight and corrosion-proof
- Ideal for coastal and high-humidity regions
- Amber lends itself to cautionary signaling
- Manufactured in an ISO-certified facility
- Build America / Buy America compliant
