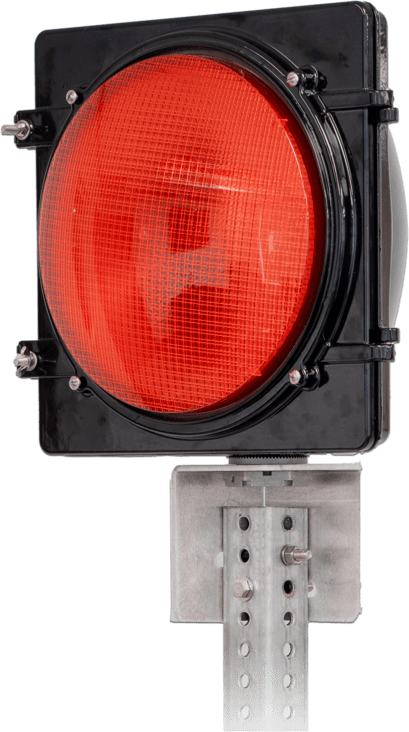

Post Top Beacon – Aluminum Housing – Red

Part Number: M75-BCNPT-SBA2

MUTCD Sign Rings: If your controller is running firmware 401N or >, adjust brightness from 100% to 60%. Failure to do so will result in higher power draw and solar systems may fail.

Is my ring MUTCD?
There is a -M at the end of the model number for MUTCD compliant rings

Summary

The Post Top Red Aluminum Beacon provides a powerful and urgent visual indication using a 12" red LED lamp. The durable aluminum housing ensures long-term structural reliability in demanding roadway environments.

Product Options

• M75-BCNPT-SBA2: Black Aluminum Housing, 12" Red Ball

Specifications

LED Illumination

• 12" red LED beacon
• Auto-dimming
• MUTCD compliant
• ITE VTCSH compliant

Electrical

• Operating voltage: 10–28 VDC
• Power draw: 4.4W

Housing

• Black powder-coated aluminum
• Heavy-duty enclosure
• Does not include visor
• Does not include back plate

Mounting

• Designed for pole-top mounting
• Vertical installation with fixed base

Environmental

• NEMA 4X weather-sealed
• Operating range: −29.2°F to +165.2°F (−34°C to +74°C)

Warranty

• 5-year limited warranty
• Unlimited U.S.-based technical support

Why Choose Post Top Aluminum – Red?

• Strong urgency indication
• Rugged aluminum construction
• Ideal for STOP, DO NOT ENTER, WRONG WAY
• High reliability in extreme temperatures
• Manufactured in the USA
• Build America / Buy America compliant
