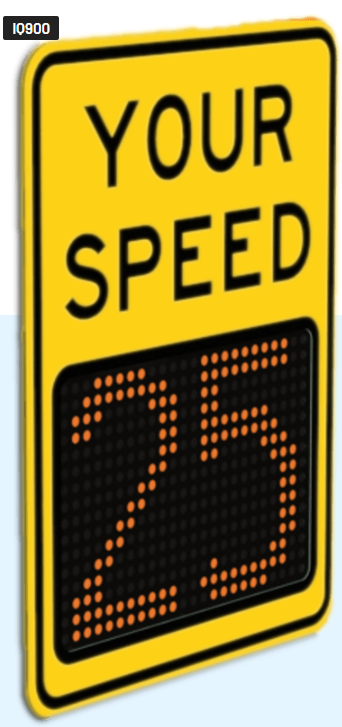

9" Full Matrix Radar Speed Sign – iQ900

Part Number: M75-9IDFB-000x

Summary

The iQ900 features bright 9″ (22.9 cm) characters that can be seen from up to 450 ft (137.2 m) away. This unit includes a full-matrix display allowing speed numbers and custom messages like “SLOW DOWN” or “TOO FAST”. Enhanced data collection, Bluetooth/RS-232 communication, and branded software are built-in, making it ideal for high-visibility or data-driven deployments.

Product Options

• M75-9IDFB-0001: iQ900 Full Matrix Radar Speed Sign – White
• M75-9IDFB-0002: iQ900 Full Matrix Radar Speed Sign – Fluorescent Yellow-Green
• M75-9IDFB-0003: iQ900 Full Matrix Radar Speed Sign – Orange
• M75-9IDFB-0004: iQ900 Full Matrix Radar Speed Sign – Yellow

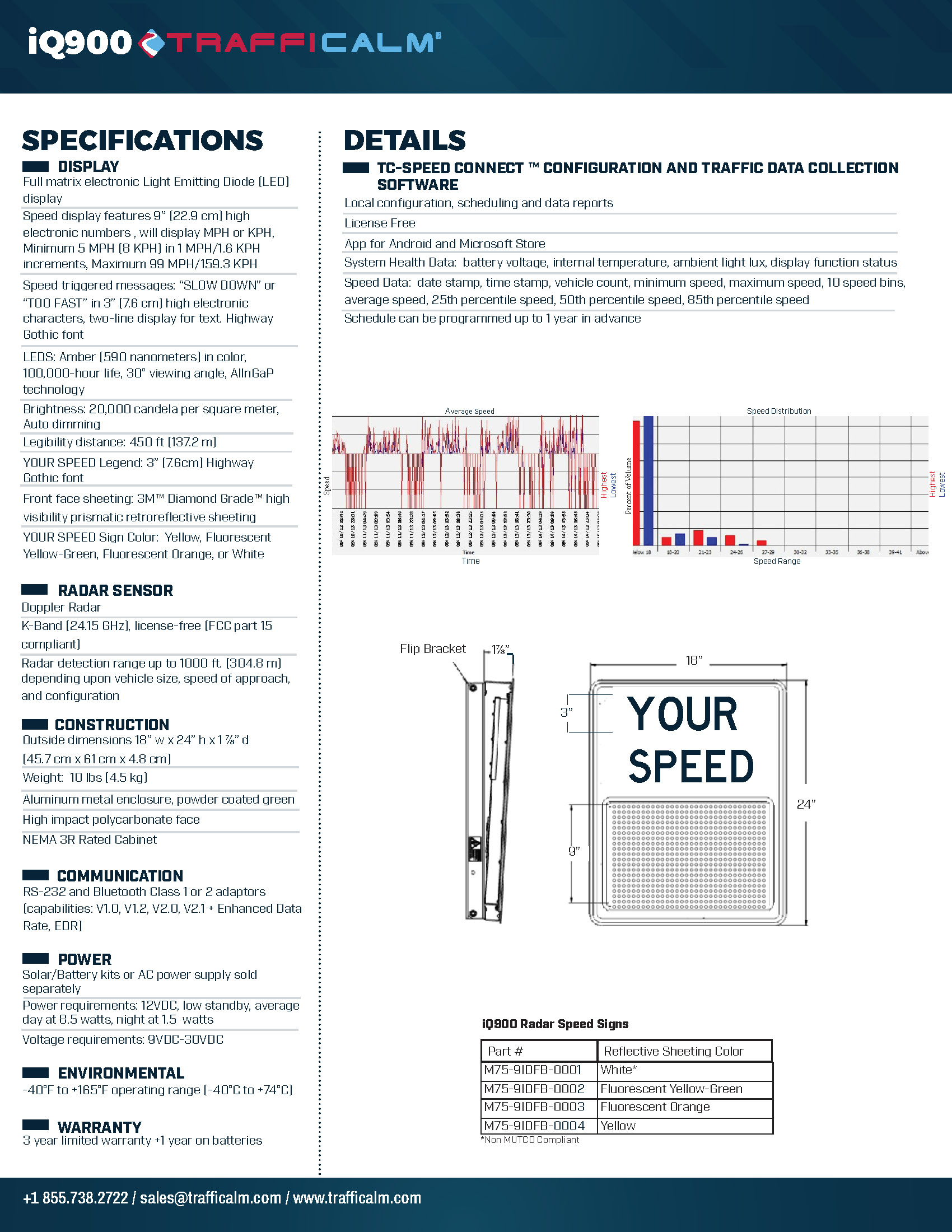

Specifications

Display

• Full-matrix LED display
• 9″ (22.9 cm) high electronic numbers; displays from 5 mph (8 kph) to 99 mph (159.3 kph) in 1 mph/1.6 kph increments
• Speed-triggered messages in 3″ (7.6 cm) characters, two-line display, Highway Gothic font
• Amber LEDs (590 nm), rated for 100,000 hours, 30° viewing angle, AlInGaP technology
• Brightness up to 20,000 cd/m² with automatic dimming
• Legibility up to 450 ft (137.2 m)
• “YOUR SPEED” legend uses 3″ (7.6 cm) Highway Gothic font
• Front face sheeting: high-visibility, prismatic retroreflective material

Radar Sensor

• K-Band (24.15 GHz), license-free (FCC Part 15 compliant)
• Doppler radar detection range up to 1,000 ft (304.8 m) depending on vehicle size and conditions

Construction

• Dimensions: 18″ W × 24″ H × 1 7/8″ D (45.7 cm × 61 cm × 4.8 cm)
• Weight: ~10 lb (4.5 kg)
• Aluminum powder-coated metal enclosure
• High-impact polycarbonate face
• Cabinet rated NEMA 3R
• Quick-disconnect mounting bracket included

Communication

• RS-232 and Bluetooth Class 1/2 adaptable (V1.0, V1.2, V2.0, V2.1 + EDR)

Power

• 12 VDC nominal; low-standby power consumption (~8.5 W day, ~1.5 W night)
• Voltage range: 9–30 VDC
• Compatible with solar/battery kits or AC power supplies (sold separately)

Environmental

• Operating temperature range: -29 °F to +165 °F (-34 °C to +74 °C)

Warranty

• 3-year limited warranty on sign electronics
• 1-year warranty on batteries

Why Choose the iQ900?

• Full-matrix display supports custom messaging and high-impact visibility
• Built-in data logging and scheduling via included software – ideal for performance tracking, before/after studies, and analytics
• Rugged, lightweight design optimized for both permanent and portable deployments
• High-visibility LEDs and retroreflective sheeting enhance driver awareness and compliance
