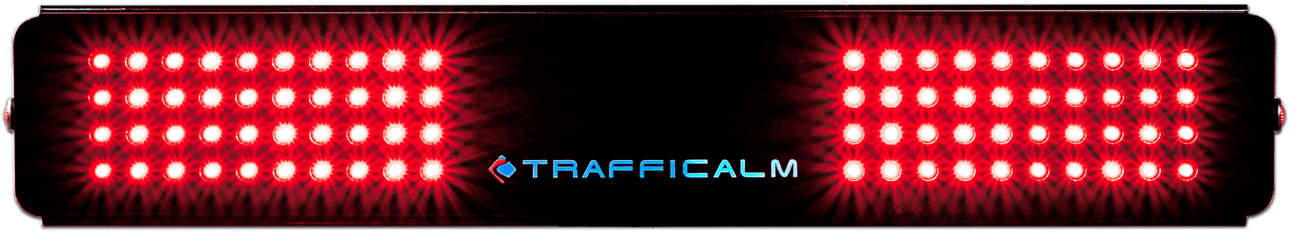

TraffiCalm RRFB — Red Wrong-Way / Do-Not-Enter Alert Beacon
Red RRFB: Intense wrong-way traffic alert system for vehicle directional violations with 12VDC power
Updated
by Dylan Solberg
Part Numbers: M75-SA328-R000
Summary
The TraffiCalm Red RRFB is used exclusively for wrong-way and do-not-enter applications. It provides intense red flashing output for directional violation alerts.
Product Options
- M75-SA328-R000 — Red RRFB for wrong-way applications
Specifications
Optical Output
- Red LED indication
- Not used for pedestrian applications
- Default flash: 1 flash/second
- Optimized for driver attention in “Do-Not-Enter” scenarios
Activation Methods
- Standard compatible controllers:
- Dual-radar wrong-way controllers (recommended)
- Standard TraffiCalm controllers (also supported)
- Triggering sources may include:
- dual-radar confirmation
- zone-based activation
- manual override input
Electrical / Power
- Operates from 12VDC system bus
- Consumption ≤ 12W
Installation
- Mounts adjacent to “Do Not Enter” signage
- Aimed toward approaching traffic lanes where wrong-way movement may originate
Housing
- Aluminum housing
- Black finish only
- Fully weather sealed
Environmental Rating
- Operating range: −29.2°F to +165.2°F
Wrong-Way Use Certification
- NOT authorized for pedestrian crossings
- ONLY for vehicle directional violation alerting
Warranty & Support
- 5-year warranty
- Unlimited technical support
Ordering
- M75-SA328-R000
