Sign Post Flasher

Part Numbers

• M75-R0060-FA40
• M75-R0060-RR00
• M75-R0060-WW30
• M75-R0060-YA40

Product Overview

TraffiCalm Sign Post Flashers bring unmatched illumination and driver awareness to traffic sign locations that have been prone to crashes. They are designed to enhance the traditional sign post reflector and to be paired with TraffiCalm’s Flashing LED Sign Rings. The entire system is virtually impossible to miss and increases visibility, especially in adverse weather and nighttime conditions.

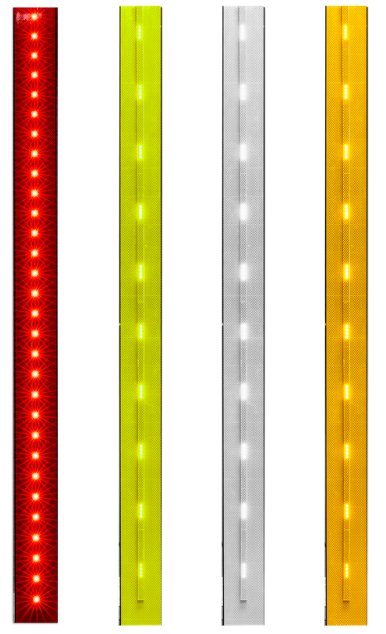

Product Options

• M75-R0060-FA40: 60" x 5/8" Hi-Viz Yellow (Reflective with 4 Grouped Amber LEDs)
• M75-R0060-RR00: 60" x 5/8" Red (Reflective with Single Spaced Red LEDs)
• M75-R0060-WW30: 60" x 5/8" White (Reflective with 3 Grouped White LEDs)
• M75-R0060-YA40: 60" x 5/8" Yellow (Reflective with 4 Grouped Amber LEDs)

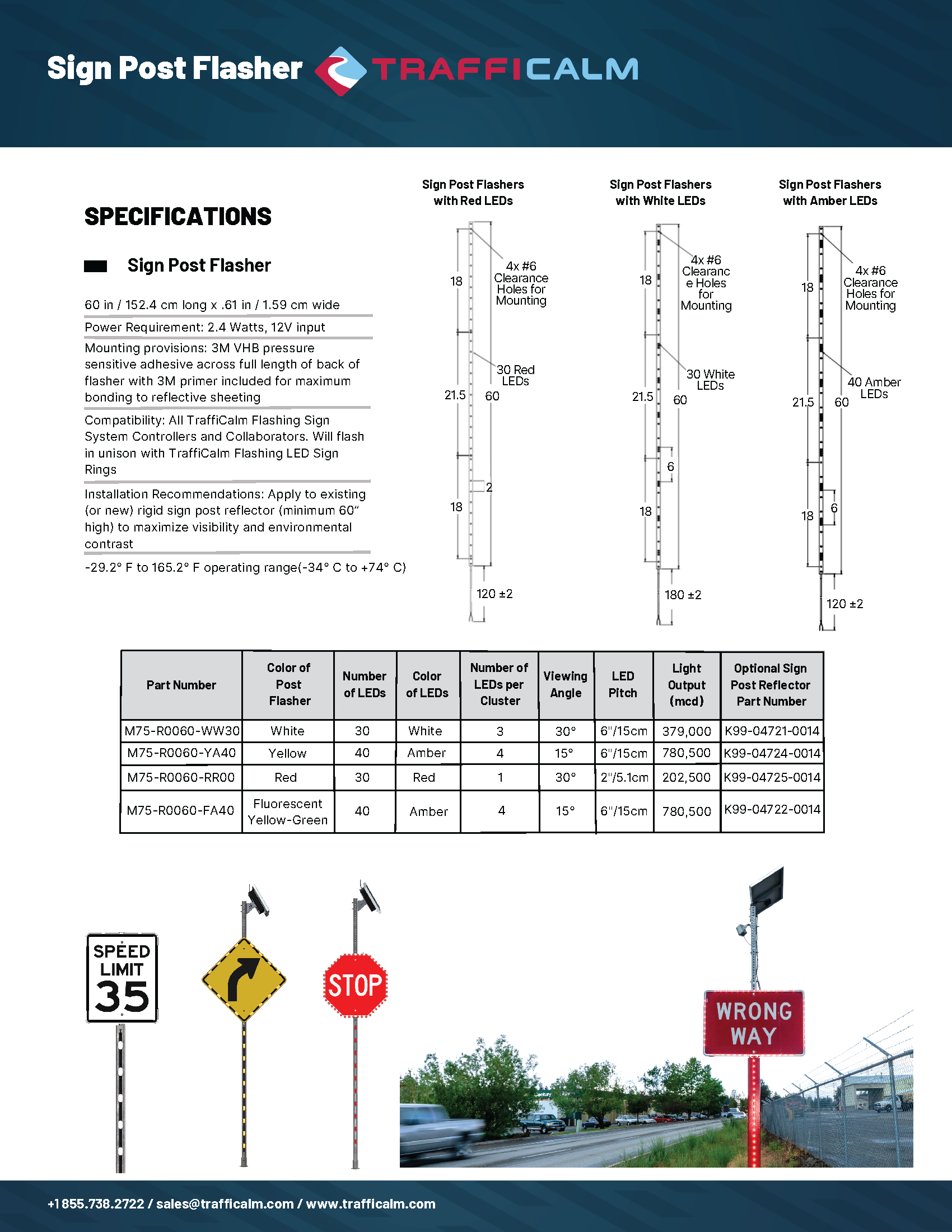

Specifications

Dimensions

• Length: 60” (152.4 cm)
• Width: 0.61” (1.59 cm)

Electrical

• Power Requirement: 2.4 Watts
• Input Voltage: 12 VDC

Mounting and Installation

• Mounting Provisions: 3M VHB pressure sensitive adhesive across full length of back of flasher
• Included Materials: 3M primer included for maximum bonding to reflective sheeting
• Installation Recommendations: Apply to existing (or new) rigid sign post reflector (minimum 60” high) to maximize visibility and environmental contrast

Compatibility

• Integrates with all TraffiCalm Flashing Sign System Controllers and Collaborators
• Will flash in unison with TraffiCalm Flashing LED Sign Rings

Environmental

• Construction: Environmentally sealed electronics in epoxy-potting
• Housing: Heavy-gauge aluminum housings built for road use
• Operating temperature: -29.2°F to +165.2°F (-34°C to +74°C)
• Enclosure rating: NEMA 4X

Warranty

• 5-year limited warranty
• Unlimited technical support from U.S.-based factory technicians

Key Features and Compliance

• Enhances the visibility of the sign post reflector with LEDs to punch through environmental conditions
• Ruggedized electronics for road use
• LEDs rated at 100,000 hours of operation at constant, full output
• Flashes at the MUTCD rate of once per second
• Manufactured in the USA in an ISO 9001:2015 certified facility
• Build America / Buy America compliant
