Chevron Sign Flashing LED Ring – Left

Part Number: M75-Rxxxx-BA1L

Summary

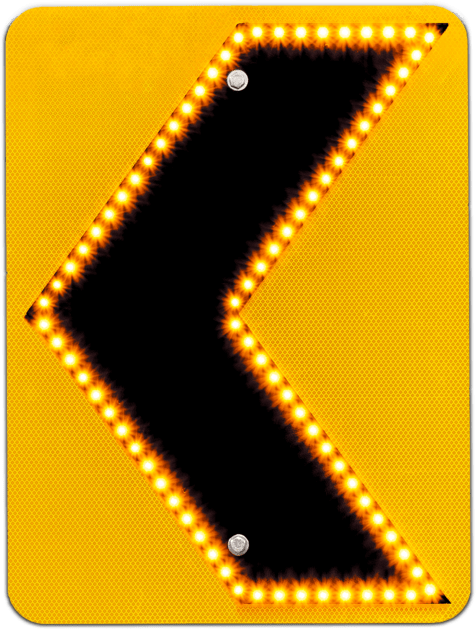

The Chevron Sign Flashing LED Ring – Left outlines the perimeter of a standard left chevron warning sign with high-intensity amber LEDs to guide drivers through curves and ramps. Designed to retrofit existing MUTCD-compliant chevron signs, this LED ring creates a dynamic, highly visible indication of horizontal curves, especially at night and in adverse weather. Fully sealed electronics, rugged construction, and 12 VDC operation make it ideal for long-term deployment as part of TraffiCalm curve warning systems.

Product Options

All sizes are left-chevron amber LED rings:

• M75-R1824-BA1L – 18" x 24" Chevron Left Amber
• M75-R2430-BA1L – 24" x 30" Chevron Left Amber
• M75-R3036-BA1L – 30" x 36" Chevron Left Amber
• M75-R3648-BA1L – 36" x 48" Chevron Left Amber

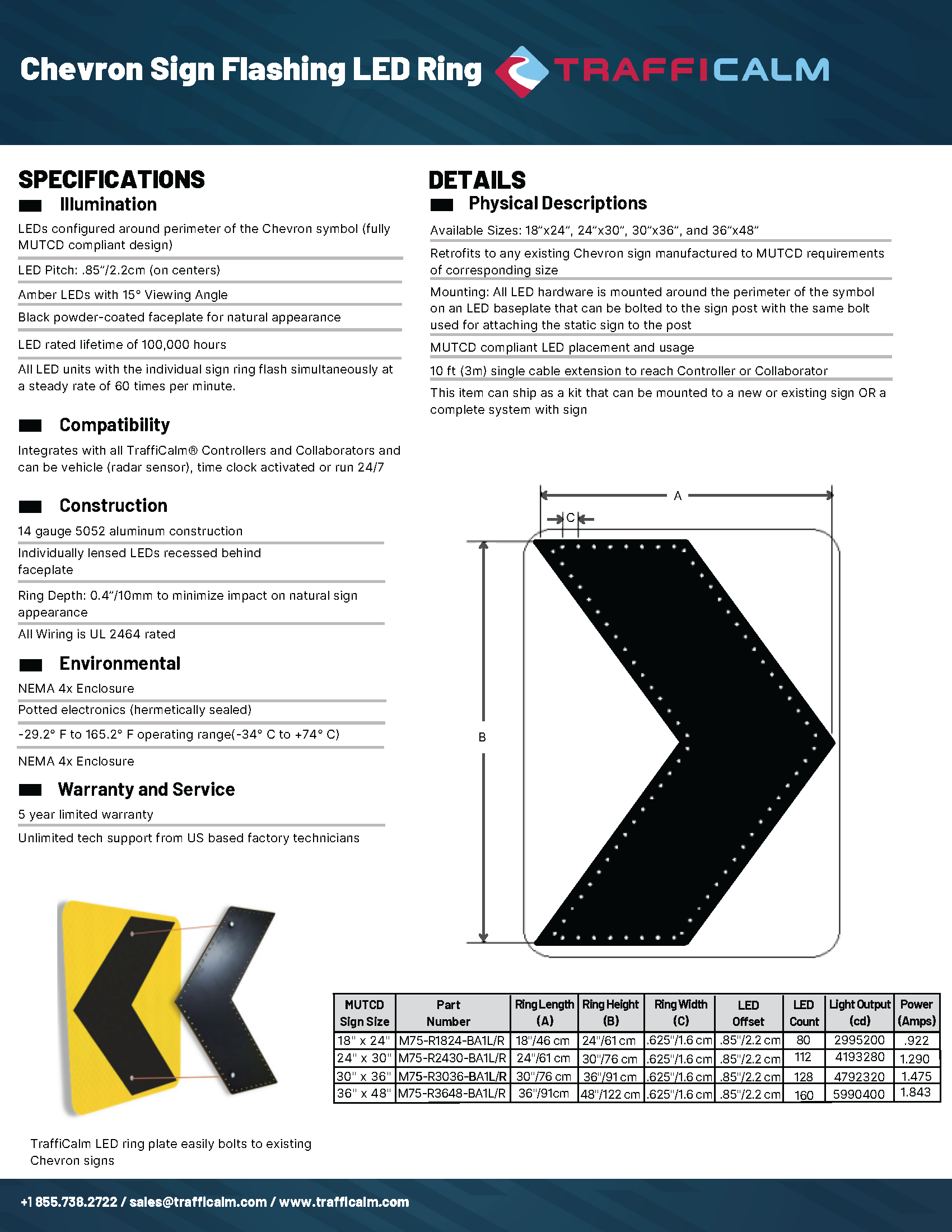

Specifications

Available Sizes

• 18" x 24"
• 24" x 30"
• 30" x 36"
• 36" x 48"

Illumination

• LEDs configured around the perimeter of the Chevron symbol (fully MUTCD-compliant layout)
• Amber LEDs with 15° viewing angle
• LED pitch: 0.85" (2.2 cm) on centers
• LED rated lifetime: 100,000 hours
• All LEDs within a single ring flash simultaneously at a steady rate of 60 flashes per minute

LED Performance and Electrical

• Operating voltage: 12 VDC (supplied from TraffiCalm controller or collaborator)
• 18" x 24": 80 LEDs, approximate light output 2,995,200 cd, current draw 0.922 A
• 24" x 30": 112 LEDs, approximate light output 4,193,280 cd, current draw 1.290 A
• 30" x 36": 128 LEDs, approximate light output 4,792,320 cd, current draw 1.475 A
• 36" x 48": 160 LEDs, approximate light output 5,990,400 cd, current draw 1.843 A

Compatibility

• Retrofits to any left-chevron sign manufactured to MUTCD requirements for the corresponding size
• Integrates with all TraffiCalm controllers and collaborators
• Supports radar-based activation, time-clock activation, or 24/7 flashing when configured through the controller

Construction

• 14-gauge 5052 aluminum construction
• Black powder-coated faceplate to maintain natural sign appearance
• Individually lensed LEDs recessed behind faceplate
• All electronics, radios, and LEDs fully epoxy-potted and environmentally sealed
• All wiring UL 2464 rated

Physical Descriptions

• Ring depth: 0.4" (10 mm) to minimize impact on sign profile
• Ring width (C): 0.625" (1.6 cm)
• LED offset from border: 0.85" (2.2 cm)
• Ring length (A) and height (B):
  • 18" x 24": 18" (46 cm) by 24" (61 cm)
  • 24" x 30": 24" (61 cm) by 30" (76 cm)
  • 30" x 36": 30" (76 cm) by 36" (91 cm)
  • 36" x 48": 36" (91 cm) by 48" (122 cm)

Mounting

• LED hardware mounted around the perimeter of the Chevron symbol on an LED baseplate
• Baseplate bolts to the sign post using the same hardware as the static sign
• 10 ft (3 m) single cable extension to reach TraffiCalm controller or collaborator
• Can be shipped as an LED ring kit for retrofit or as a complete sign-plus-ring assembly

Environmental

• NEMA 4X enclosure rating
• Operating temperature range: −29.2°F to +165.2°F (−34°C to +74°C)

Warranty

• 5-year limited warranty on LED ring and electronics
• Unlimited technical support from U.S.-based factory technicians

Why Choose the Chevron Sign Flashing LED Ring – Left?

• Fully outlines the left-chevron symbol for maximum curve visibility
• High LED density and focused optics enhance driver guidance at night and in bad weather
• Simple retrofit design leverages existing MUTCD chevron signs
• Rugged, potted electronics withstand extreme temperatures and moisture
• Seamless integration with TraffiCalm curve warning and sequencing systems
• Designed and manufactured in the USA in an ISO 9001:2015 certified facility
• Build America / Buy America compliant
