Guardian Duo Datasheet

Product Overview

The Guardian Duo is a two-wire Accessible Pedestrian Signal (APS) system designed to provide audible and vibrotactile crossing information to pedestrians at signalized intersections. The system utilizes existing field wiring between the traffic cabinet and push button stations, allowing simplified installation while maintaining full accessibility functionality.

Guardian Duo stations provide locator tones, audible walk messages, and vibrotactile feedback to assist pedestrians with visual impairments. The system can be configured using the PedConnex utility via Bluetooth or USB-C connection.

The Guardian Duo system consists of three primary components:

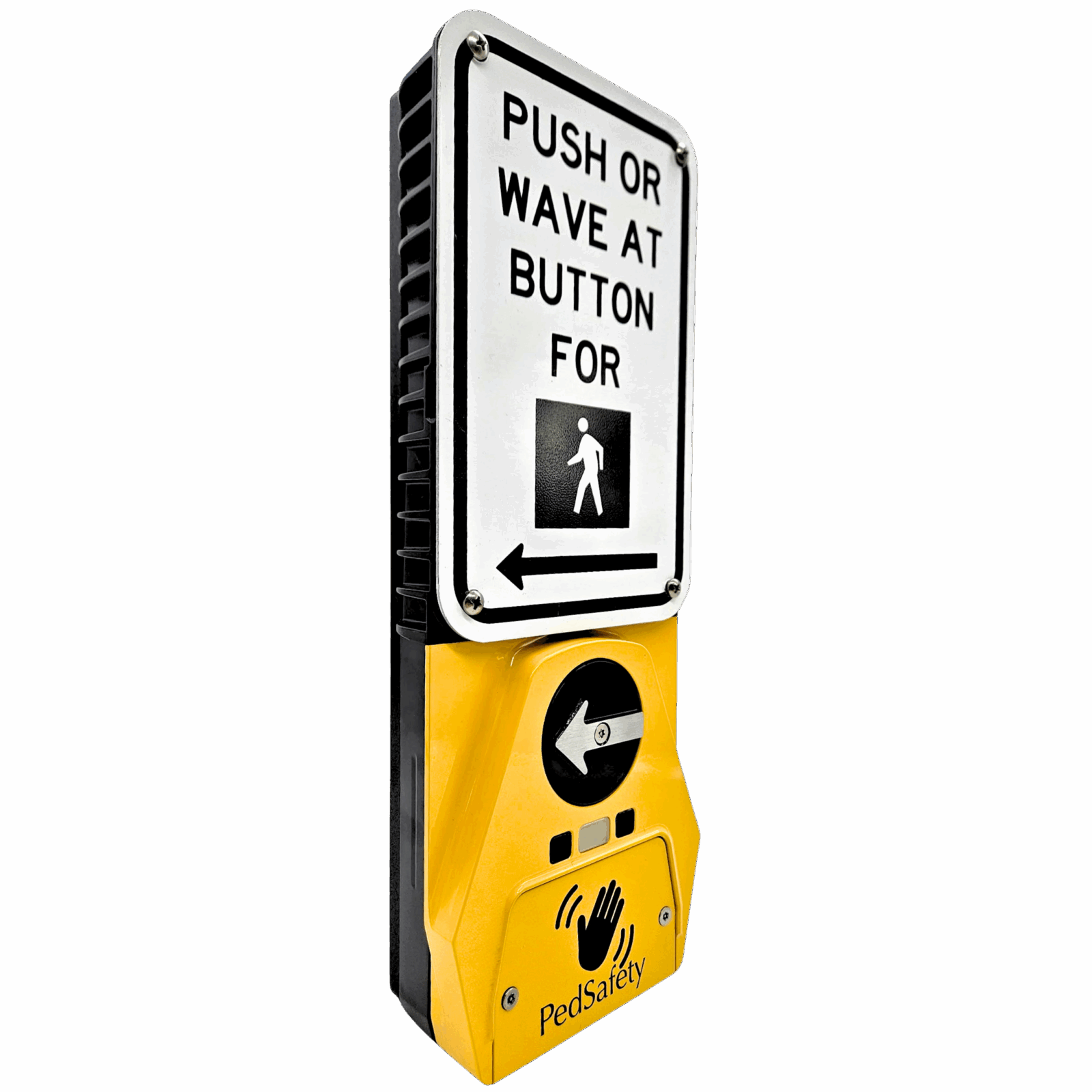

• Guardian Duo Accessible Push Button (APB)

• Duo Controller

• Duo Power Supply

Key Features

• Two-wire APS communication using existing field wiring

• Audible walk indications and locator tones

• Vibrotactile walk feedback

• Bluetooth configuration capability

• USB-C configuration capability

• Automatic station discovery and phasing

• Ethernet monitoring capability

• Support for up to 16 APS stations per controller

Technical Specifications

Guardian Duo Accessible Push Button

Operating Voltage

• 12–24 VDC (15 VDC nominal)

Power Consumption

• 3 W maximum

Operating Temperature

• −34°C to +74°C

Storage Temperature

• −40°C to +85°C

Push Button Force

• 2 lb typical

Switch Life

• Greater than 25 million activations

Maximum Audio Output

• 100 dBA at 1 meter

Dimensions

• 13.26 in × 4.98 in × 2.35 in

Weight

• 4.0 lb

Duo Controller

Operating Voltage

• 16 VDC nominal

Power Consumption

• 5 W maximum

Channels

• 4

Maximum Stations

• 16 (4 per channel)

Monitoring Interface

• Ethernet web interface and SNMP monitoring

Dimensions

• 4.5 in × 2.40 in × 8.004 in

Weight

• 0.7 lb

Duo Power Supply

Input Voltage

• 89–134 VAC

Output Voltage

• 16 VDC nominal

Output Power

• 40 W maximum

Dimensions

• 7 in × 3.25 in × 2.25 in

Weight

• 1.32 lb
