Solar Central: Side mount – 100 Watt / 70 Ah

Part Number: M75-SOLAR-000C

MUTCD Sign Rings: If your controller is running firmware 401N or >, adjust brightness from 100% to 60%. Failure to do so will result in higher power draw and solar systems may fail.

Is my ring MUTCD?
There is a -M at the end of the model number for MUTCD compliant rings

Summary

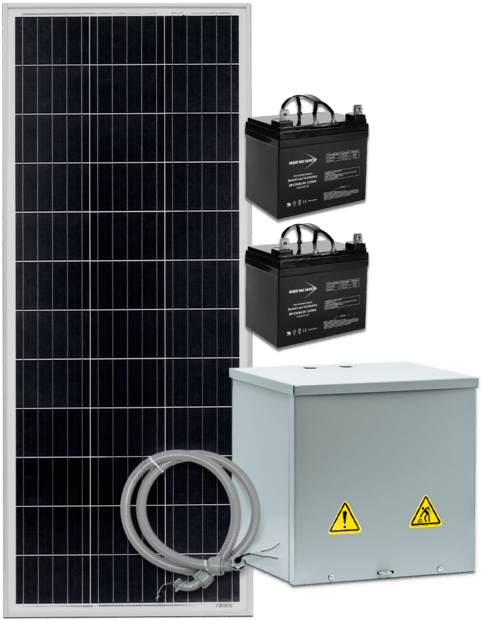

The Solar Central Kit provides year-round off-grid power for TraffiCalm radar speed signs using a 100-watt solar panel and a 70 Ah dual-battery configuration. Engineered for sites with consistent solar exposure, this kit supplies increased charging capability and extended energy storage for reliable operation. The system is delivered as a complete package including panel, controller, battery enclosure, hardware, and conduit-protected wiring, ensuring a fast and durable roadside installation.

Product Options

This solar kit is available in a single configuration under part number M75-SOLAR-000C.

Kit contents are fixed as detailed in the specifications.

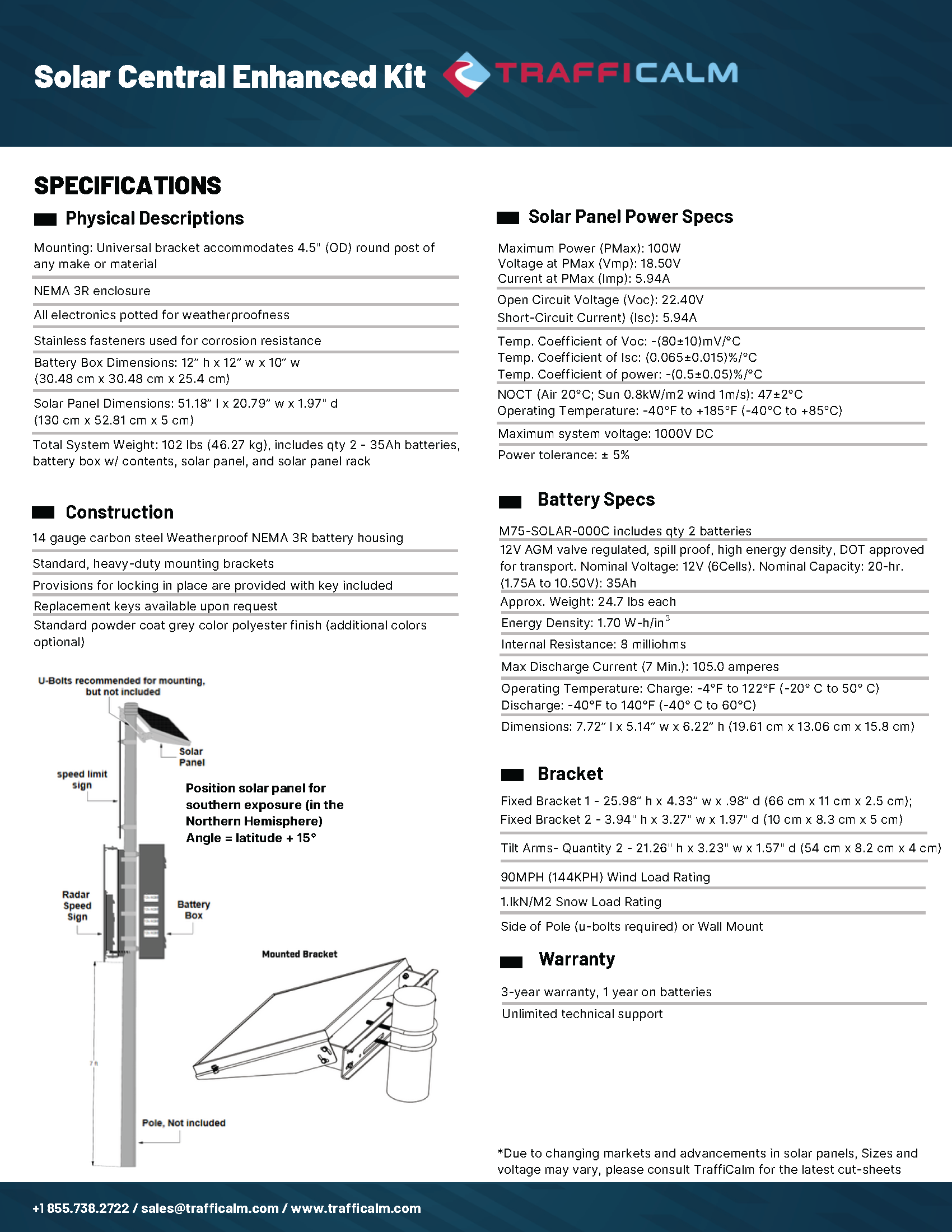

Specifications

Physical Descriptions

• Universal mounting bracket accommodates 4.5" OD round posts
• NEMA 3R weatherproof enclosure
• All electronics potted for weatherproofness
• Stainless steel fasteners for corrosion resistance
• Solar panel dimensions: 51.18" L × 20.79" W × 1.97" D (130 cm × 52.81 cm × 5 cm)
• Battery box dimensions: 12" H × 12" W × 10" D (30.48 cm × 30.48 cm × 25.4 cm)
• Total system weight: 102 lb (46.27 kg), including two 35 Ah batteries, battery box, solar panel, and rack

Solar Panel Power Specs

• Maximum Power (Pmax): 100 W
• Voltage at Pmax (Vmp): 18.50 V
• Current at Pmax (Imp): 5.94 A
• Open Circuit Voltage (Voc): 22.40 V
• Short-Circuit Current (Isc): 5.94 A
• Temperature coefficient of Voc: −(80 ± 10) mV/°C
• Temperature coefficient of Isc: (0.065 ± 0.015)%/°C
• Temperature coefficient of power: −(0.5 ± 0.05)%/°C
• NOCT: 47 ± 2 °C
• Maximum system voltage: 1000 V DC
• Operating temperature: −40°F to +185°F (−40°C to +85°C)

Battery Specs

• Quantity 2 AGM batteries (35 Ah each)
• 12 V AGM, valve-regulated, spill-proof, high-energy density
• Nominal capacity (20-hr, 1.75 A to 10.50 V): 35 Ah each
• Internal resistance: 8 milliohms
• Max discharge current (7 min): 105 A
• Battery dimensions: 7.72" L × 5.14" W × 6.22" H (19.61 cm × 13.06 cm × 15.8 cm)
• Approximate battery weight: 24.7 lb each
• Operating temperature:
  • Charge: −4°F to 122°F (−20°C to 50°C)
  • Discharge: −40°F to 140°F (−40°C to 60°C)

Construction

• 14-gauge carbon steel NEMA 3R battery housing
• Heavy-duty mounting brackets included
• Keyed lock provided; replacement keys available
• Standard grey polyester powder-coat finish (optional colors available)

Bracket

• Fixed Bracket 1: 25.98" H × 4.33" W × 0.98" D (66 cm × 11 cm × 2.5 cm)
• Fixed Bracket 2: 3.94" H × 3.27" W × 1.97" D (10 cm × 8.3 cm × 5 cm)
• Tilt Arms (Qty 2): 21.26" H × 3.23" W × 1.57" D (54 cm × 8.2 cm × 4 cm)
• Wind load rating: 90 MPH (144 KPH)
• Snow load rating: 1.1 kN/m²
• Supports side-of-pole (requires U-bolts) or wall-mount installation

Environmental

• Operating temperature range (system): −40°F to +185°F (−40°C to +85°C)

Warranty

• 3-year limited warranty on the solar kit
• 1-year warranty on batteries
• Unlimited technical support included

Why Choose the Solar Central Kit – 100 W / 70 Ah?

• Higher-power 100 W panel supports stronger charging in moderate and high-sun locations
• Dual 35 Ah AGM batteries provide extended runtime and higher autonomy
• All-in-one package simplifies installation and reduces field labor
• Rugged NEMA 3R steel housing and potted electronics ensure long-term durability
• Adjustable tilt brackets optimize daily solar capture
• Compatible with TraffiCalm radar speed signs and standardized mounting hardware
• Built in the USA and compliant with Build America/Buy America requirements
