50 Watt Solar Panel Kit – Side of Pole Mount

Part Number: M75-SLRPN-050W

Summary

The 50 Watt Solar Panel Kit provides dependable solar power for TraffiCalm Flashing Sign Systems. Designed for side-of-pole and wall-mount applications, this kit includes a high-efficiency monocrystalline panel, heavy-duty adjustable bracket, and weather-sealed wiring components to ensure reliable year-round power delivery in demanding environmental conditions.

Product Options

Product is available under a single part number: M75-SLRPN-050W. Configuration is specified at time of order.

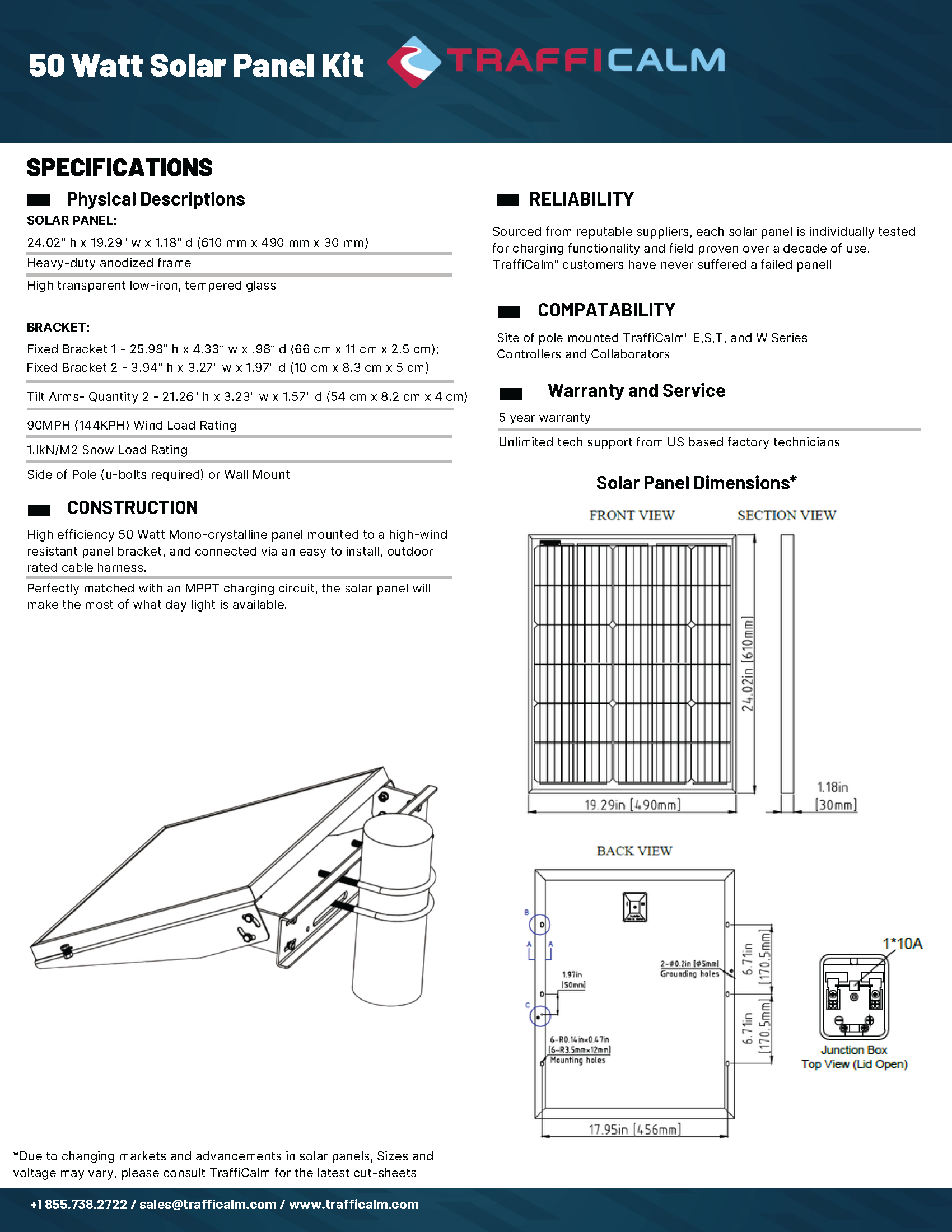

Specifications

Physical Descriptions

• Solar panel dimensions: 24.02" h x 19.29" w x 1.18" d (610 mm x 490 mm x 30 mm)
• Heavy-duty anodized frame
• High-transparent low-iron tempered glass

Bracket

• Fixed Bracket 1: 25.98" h x 4.33" w x 0.98" d (66 cm x 11 cm x 2.5 cm)
• Fixed Bracket 2: 3.94" h x 3.27" w x 1.97" d (10 cm x 8.3 cm x 5 cm)
• Tilt Arms (quantity 2): 21.26" h x 3.23" w x 1.57" d (54 cm x 8.2 cm x 4 cm)
• Wind load rating: 90 mph (144 kph)
• Snow load rating: 1.1 kN/m²
• Supports side-of-pole and wall-mount installation
• U-bolts required for pole mounting

Construction

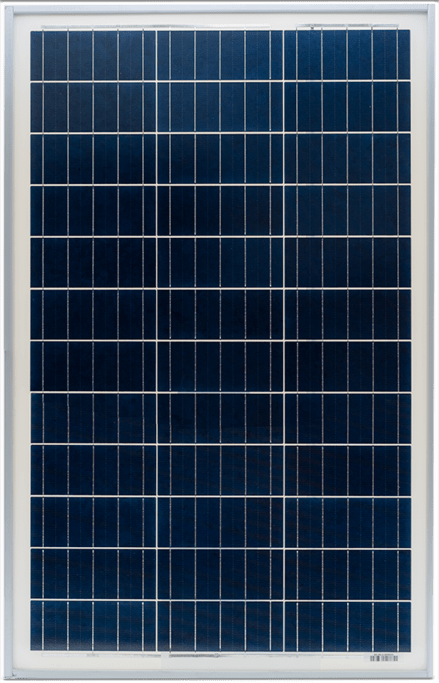

• 50W monocrystalline panel
• Mounted to high-wind-resistant bracket system
• Easy-install outdoor-rated cable harness
• MPPT charger compatible

Compatibility

• Compatible with TraffiCalm E, S, T, and W Series controllers and collaborators

Reliability

• Each panel individually tested for charging performance
• Proven in field deployment over a decade
• No known panel failures

Environmental

• Operating temperature range: −40°F to +185°F (−40°C to +85°C)

Warranty

• 5-year warranty
• Unlimited technical support for life of unit

Why Choose the 50 Watt Side-of-Pole Solar Kit?

• Increased solar capacity for higher-load sign systems
• Side-of-pole and wall-mount flexibility
• Rugged, field-tested performance
• Built in ISO-certified USA facility
• Build America / Buy America compliant
• Consistent mounting hardware across TraffiCalm platform
