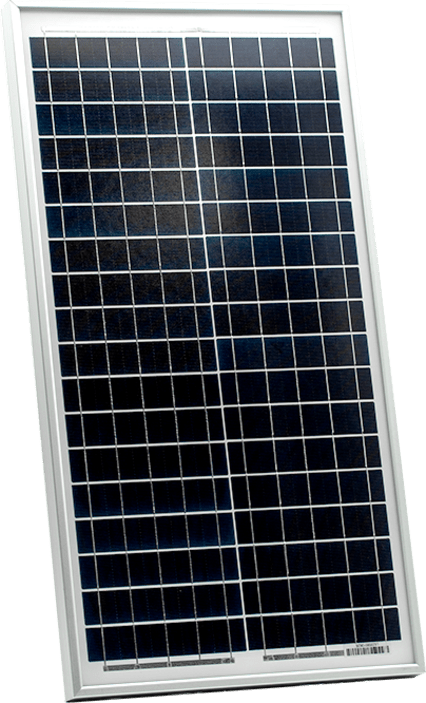

30 Watt Solar Panel Kit – Side of Pole Mount

Part Number: M75-SLRPN-030W

Summary

The 30 Watt Solar Panel Kit provides reliable solar power for TraffiCalm Flashing Sign Systems, designed for side-of-pole or wall mounting. The kit includes a high-efficiency monocrystalline solar panel, heavy-duty bracket system, and protected wiring harness for dependable year-round performance. Built for durability and field-proven in long-term deployments.

Product Options

Product is available under a single part number: M75-SLRPN-030W. Configuration is specified at time of order.

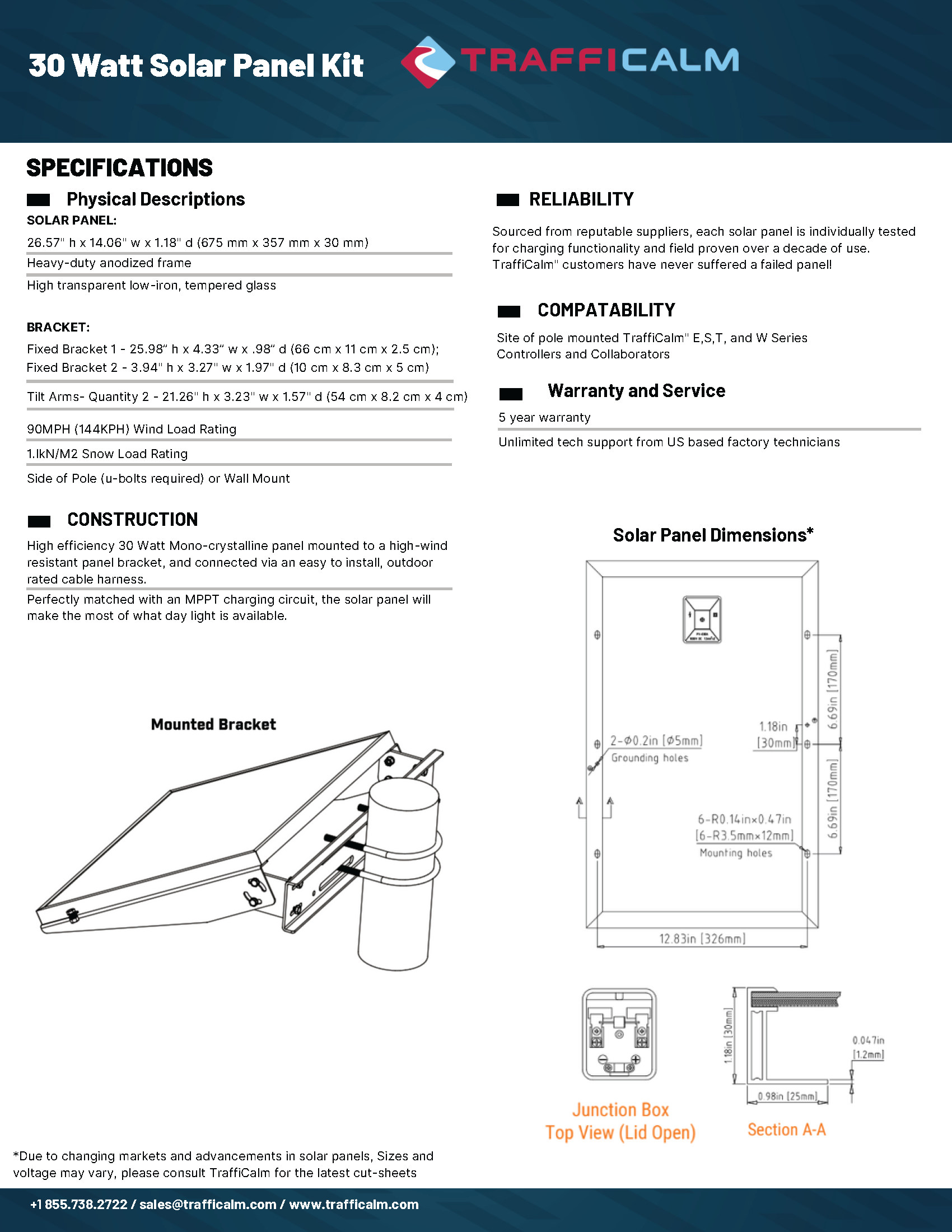

Specifications

Physical Descriptions

• Solar panel: 26.57" h x 14.06" w x 1.18" d (675 mm x 357 mm x 30 mm)
• Heavy-duty anodized aluminum frame
• Low-iron, high-transparency tempered glass

Bracket

• Fixed Bracket 1: 25.98" h x 4.33" w x 0.98" d (66 cm x 11 cm x 2.5 cm)
• Fixed Bracket 2: 3.94" h x 3.27" w x 1.97" d (10 cm x 8.3 cm x 5 cm)
• Tilt arms (x2): 21.26" h x 3.23" w x 1.57" d (54 cm x 8.2 cm x 4 cm)
• Wind load rating: 90 mph (144 kph)
• Snow load rating: 1.1 kN/m²
• Side-of-pole (U-bolts required) or wall-mount installation

Construction

• 30W mono-crystalline panel
• High-wind-resistant mounting bracket
• MPPT charging compatibility for maximum energy harvesting
• Outdoor-rated harness with sealed connectors

Compatibility

• Compatible with TraffiCalm E, S, T, and W Series controllers and collaborators

Reliability

• Each panel individually tested for charging capacity
• Over a decade of field performance
• Zero known panel failures

Environmental

• Operating temperature: −40°F to +185°F (−40°C to +85°C)

Warranty

5-year warranty

Unlimited technical support from U.S.-based factory technicians

Why Choose the 30 Watt Side-of-Pole Solar Kit?

• Strong lightweight form factor
• Flexible pole or wall mounting options
• Reliable monocrystalline performance
• Backed by verified long-term field reliability
• Designed and manufactured in the USA
• Build America / Buy America compliant
