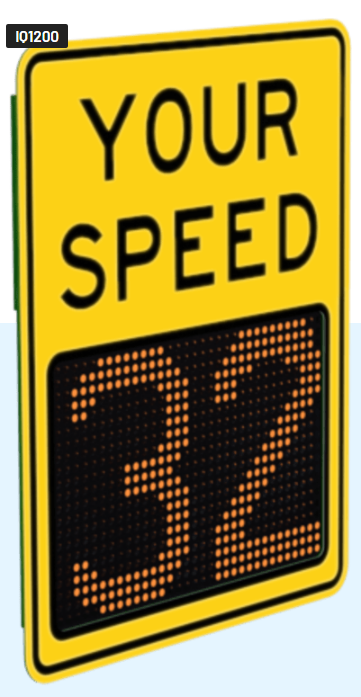

12″ Full Matrix Radar Speed Sign – iQ1200

Part Number: M75-12DFB-000x

Summary

The iQ1200 features bright 12″ (30.5 cm) LED characters that are legible from up to 600 ft (182.9 m). The full-matrix display allows both vehicle speed and custom messages such as “SLOW DOWN” or “TOO FAST,” making it ideal for high-visibility, data-driven installations and community speed-reduction programs.

Product Options

• M75-12DFB-0001: iQ1200 Full Matrix Radar Speed Sign – White
• M75-12DFB-0002: iQ1200 Full Matrix Radar Speed Sign – Fluorescent Yellow-Green
• M75-12DFB-0003: iQ1200 Full Matrix Radar Speed Sign – Orange
• M75-12DFB-0004: iQ1200 Full Matrix Radar Speed Sign – Yellow

Specifications

Display

• Full-matrix electronic LED display
• 12″ (30.5 cm) high electronic numbers
• Displays speeds from 5 mph (8 kph) to 99 mph (159 kph) in 1 mph (1.6 kph) increments
• Speed-triggered messages in approximately 5″ (12.7 cm) characters in a two-line display (Highway Gothic font)
• Amber LEDs rated for 100,000 hours with a 30° viewing angle
• Automatic brightness dimming up to approximately 20,000 cd/m²
• Legibility distance up to 600 ft (182.9 m)
• “YOUR SPEED” legend uses 4″ (10.2 cm) Highway Gothic font
• High-visibility prismatic retroreflective face sheeting

Radar Sensor

• Doppler radar, K-Band (24.15 GHz)
• FCC Part 15 compliant
• Detection range up to approximately 1,000 ft (304.8 m) depending on vehicle size and conditions

Construction

• Dimensions: 24″ W × 30″ H × 1 7/8″ D (61 cm × 76.2 cm × 4.8 cm)
• Weight: approximately 24 lb (10.8 kg)
• Aluminum enclosure with powder-coated finish
• High-impact polycarbonate face
• NEMA 3R-rated cabinet
• Quick-disconnect pole/post mounting bracket included

Communication

• RS-232 and Bluetooth compatible (Class 1/2)

Power

• Nominal 12 VDC operation
• Low standby power consumption (approximately 8.5 W during daytime and 1.5 W at night)
• Voltage range: 9–30 VDC
• Compatible with solar, battery, or AC power systems (sold separately)

Environmental

• Operating temperature range: −29 °F to +165 °F (−34 °C to +74 °C)

Warranty

• 3-year limited warranty on sign electronics
• 1-year warranty on batteries

Why Choose the iQ1200?

• Full-matrix display supports both speed indication and high-impact text messaging
• Built-in data logging and scheduling for detailed speed studies and reporting
• Rugged and lightweight design suitable for both permanent and portable installations
• High-visibility LED display and retroreflective face improve driver awareness
• Flexible power and communication options
