Stop Ring-M 2026

Part Numbers: M75-R2424-WR01-M, M75-R3030-WR01-M, M75-R3636-WR01-M, M75-R4848-WR01-M

Stop Ring-M DataSheet

Overview

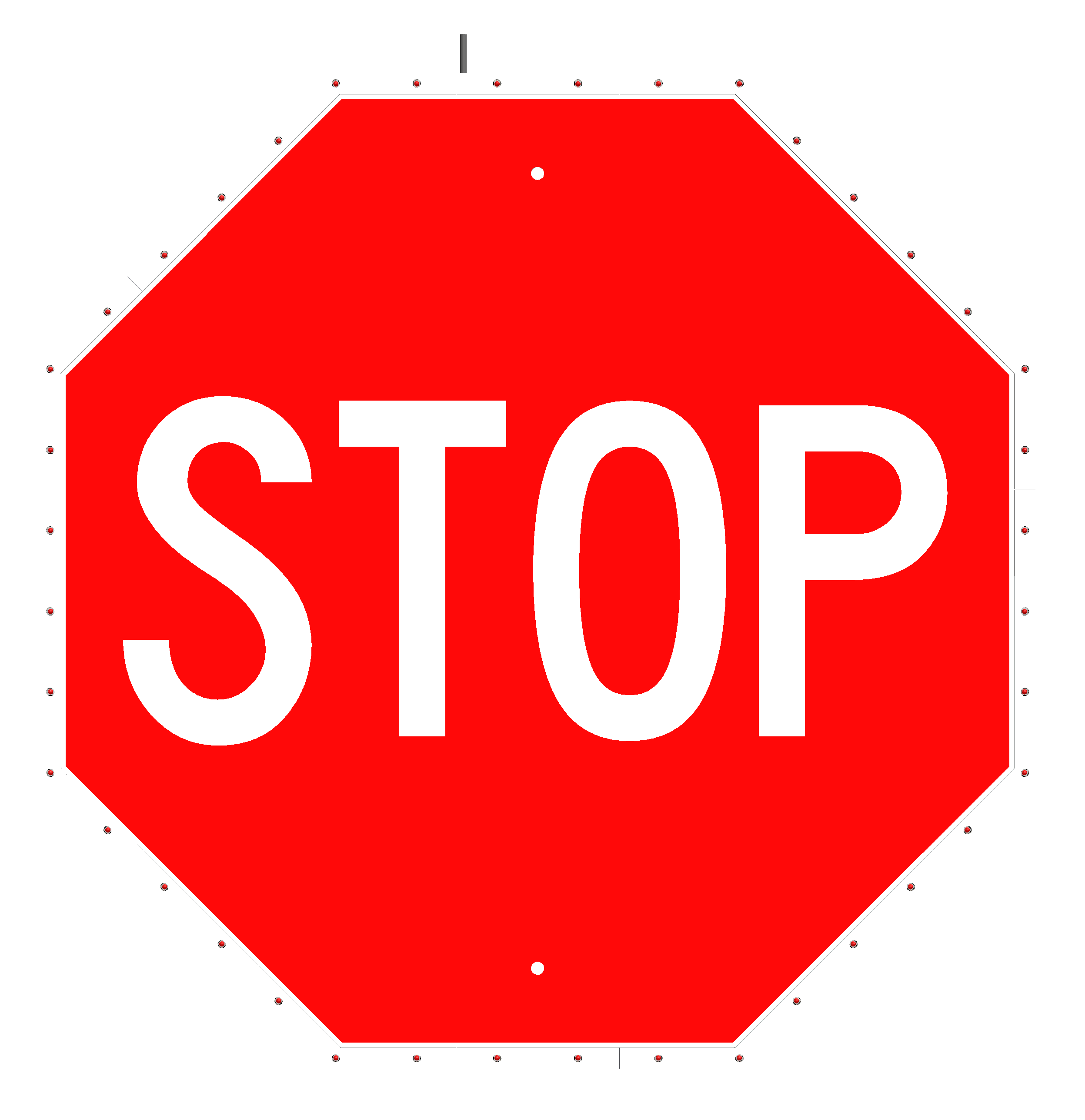

The Stop Sign Flashing LED Ring is a perimeter-mounted LED enhancement designed to increase recognition of R1-1 STOP signs while maintaining low power consumption. The system outlines the sign border with red LEDs to improve visibility in nighttime and low-contrast conditions. It is intended for roadway applications and can be deployed on new or existing STOP signs.

Key Features

• Engineered to the 11th Edition MUTCD
• Low-profile, lightweight design to reduce wind loading
• Reduced power consumption optimized for solar operation
• Optimized thermal design for outdoor reliability
• LEDs in each corner to maintain a continuous sign outline and support recognition of the STOP sign shape under nighttime viewing conditions (MUTCD 2A.12–14)

Application

• High-risk intersections
• Rural stop control
• Locations requiring enhanced regulatory sign conspicuity

Retrofittable Installation

The LED Ring can be installed on existing or new STOP signs without special fabrication using structural VHB tape or mechanical fasteners (set screws). The design supports fast field installation and straightforward upgrades to existing infrastructure.

Roadway Durability

• Epoxy-sealed electronics
• High-performance reflective sheeting
• Structural mounting integrity for long-term outdoor exposure

Compliance

• Fully MUTCD compliant, including Section 2A.12
• Designed to standard highway sign dimensions and formats in accordance with MUTCD guidance
• Build America, Buy America compliant
• ISO 9001 certified manufacturing
• Informational device; not an enforcement system

System Configuration

The Stop Sign Flashing LED Ring is available as:

• A retrofit kit (AC or solar controller and LED ring)
• A complete system including the retroreflective STOP sign

Static R1-1 sign sold separately.

Models & Sign Dimensions

Static Sign Type: R1-1 (STOP)

• M75-R2424-WR01-M — 24 in (61 cm)
• M75-R3030-WR01-M — 30 in (76.2 cm)
• M75-R3636-WR01-M — 36 in (91.4 cm)
• M75-R4848-WR01-M — 48 in (121.9 cm)

Illumination

• LEDs configured around the perimeter of the sign border with 1 LED in each corner (MUTCD-compliant design)
• LED pitch: 2.44 in (6.2 cm) ±0.5 in
• Viewing angle: 30°+
• LED color: Red
• Diamond Grade 3™ White reflective sheeting applied to the ring face to match the border of R1-1 STOP signs
• LED rated lifetime: 100,000 hours

Construction

• 14-gauge 5052 aluminum construction
• Individually lensed LEDs recessed behind faceplate
• Ring depth: 0.4 in (1.01 cm)
• Ring width: 0.625 in (1.58 cm)
• All wiring UL 2464 rated

Environmental

• Enclosure: Potted electronics, open housing
• Operating range: -29°F to 165°F (-34°C to +74°C)

Mounting

Standard mounting hardware (included with sign hardware set):

• VHB Tape
• Self Tapping Screws

Compatibility

Integrates with TraffiCalm® controllers and collaborators

Warranty & Support

• Warranty: 5-year limited
• Support: Unlimited U.S.-based factory technical support

Electrical & Output (Maximum Brightness)

• M75-R2424-WR01-M: 32 LEDs, 2,880,000 MCD, 164 mA (824 mA peak)
• M75-R3030-WR01-M: 40 LEDs, 3,600,000 MCD, 340 mA (1.7 A peak)
• M75-R3636-WR01-M: 48 LEDs, 4,320,000 MCD, 340 mA (1.7 A peak)
• M75-R4848-WR01-M: 64 LEDs, 5,760,000 MCD, 500 mA (2.5 A peak)

Notes

• Designed to reinforce regulatory sign recognition
• Not an enforcement system
• Suitable for retrofit projects and complete new installations
