Yield Sign Flashing LED Ring (R1-2)

Part Number: M75-R3030-WR49 / M75-R3636-WR49 / M75-R4848-WR49

MUTCD Sign Rings: If your controller is running firmware 401N or >, adjust brightness from 100% to 60%. Failure to do so will result in higher power draw and solar systems may fail.

Is my ring MUTCD?
There is a -M at the end of the model number for MUTCD compliant rings

Summary

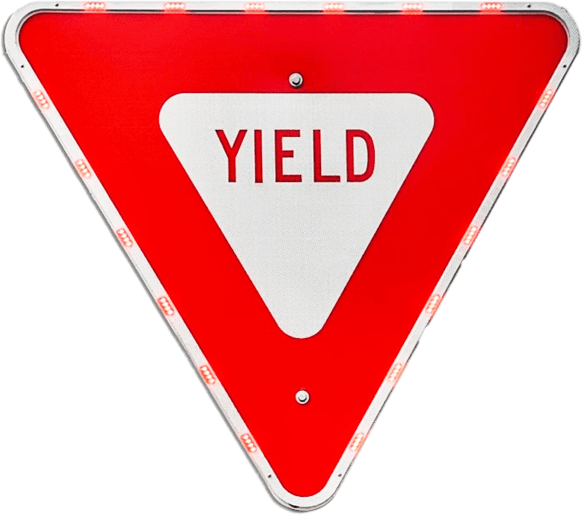

The Yield Sign Flashing LED Ring enhances standard R1-2 Yield signs by outlining the triangular border with high-intensity red LEDs. Designed to increase attention and compliance at intersections, merges, and two-way stop locations, this LED perimeter system provides exceptional visibility and weather-resistant performance. The ring operates from 12 VDC and is compatible with TraffiCalm controller-based triggering and scheduling.

Product Options

Available configurations:

• M75-R3030-WR49 – 30" LED Ring
• M75-R3636-WR49 – 36" LED Ring
• M75-R4848-WR49 – 48" LED Ring

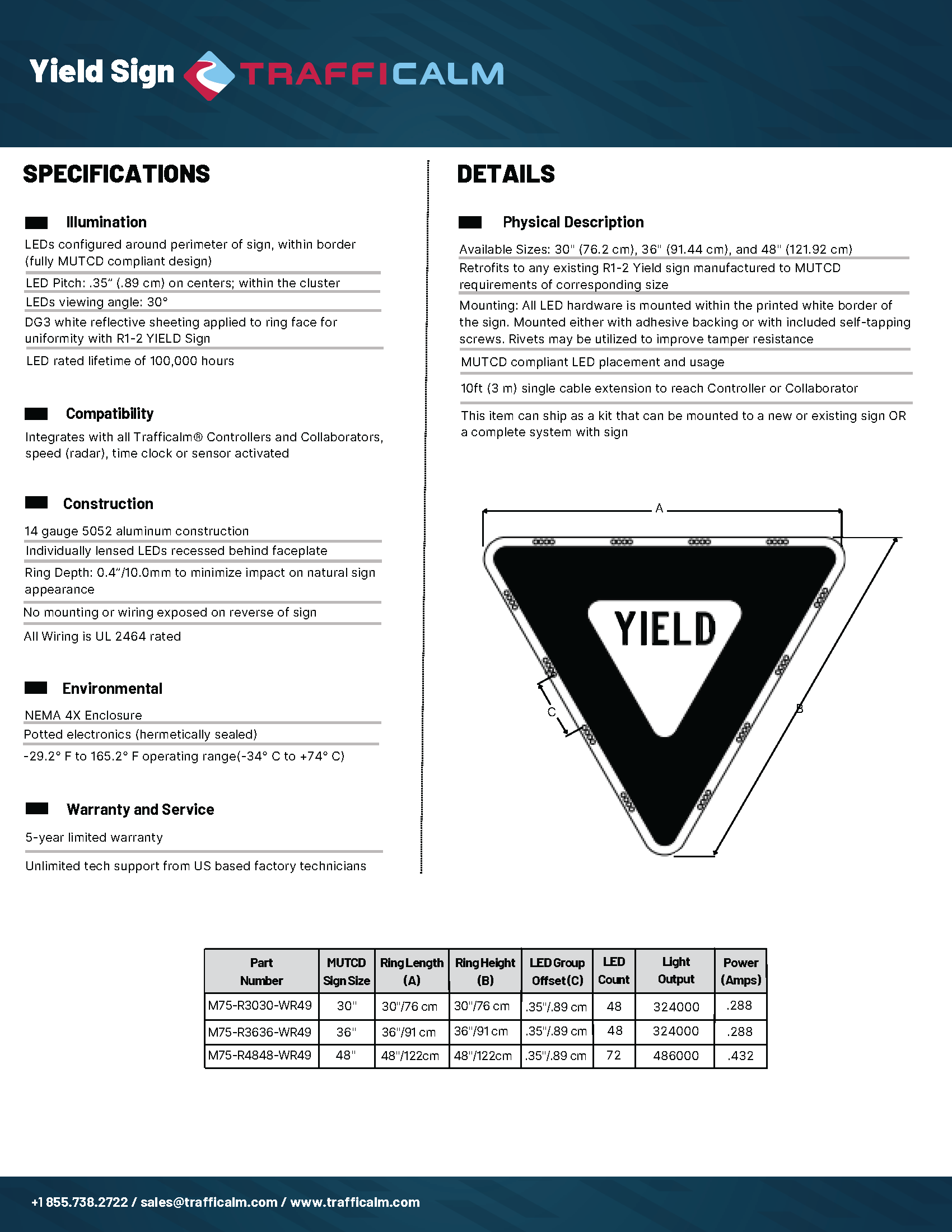

Specifications

Available Sizes

• 30"
• 36"
• 48"

Illumination

• LEDs installed around the perimeter of the sign border
• LED pitch: 0.35" (0.89 cm) on centers
• Viewing angle: 30°
• DG3 white reflective sheeting on ring face
• LED lifetime rating: 100,000 hours

Electrical

• Operating voltage: 12 VDC
• Output per size:
  • 30": 48 LEDs – 324,000 cd – 0.288 A
  • 36": 48 LEDs – 324,000 cd – 0.288 A
  • 48": 72 LEDs – 486,000 cd – 0.432 A

Construction

• 14-gauge 5052 aluminum
• Individually lensed LEDs recessed behind faceplate
• Potted electronics (hermetically sealed)
• Ring depth: 0.4" (10 mm)
• Wiring UL-2464 rated

Physical Description

• All wiring hidden behind sign plate — no exposed rear cabling
• LED group offset: 0.35" (0.89 cm)
• Retrofits to existing MUTCD-compliant R1-2 signs

Mounting

• Installed using adhesive backing or included self-tapping screws
• Rivets may be used for anti-tamper installations
• Includes 10 ft (3 m) cable to controller

Compatibility

• Integrates with all TraffiCalm Controllers and Collaborators
• Modes supported:
  • radar activation
  • time-clock scheduling
  • sensor activation
  • 24/7 operation

Environmental

• NEMA 4X enclosure rating
• Operating temperature range: −29.2°F to +165.2°F (−34°C to +74°C)

Warranty

• 5-year limited warranty
• Unlimited technical support from U.S.-based factory technicians

Why Choose the Yield Sign LED Ring?

• Strong visual enhancement for critical Yield decision points
• Proven to improve driver awareness and compliance
• Completely sealed and weather-resistant
• Fully MUTCD compliant
• Designed and manufactured in the USA
• Build America / Buy America compliant
