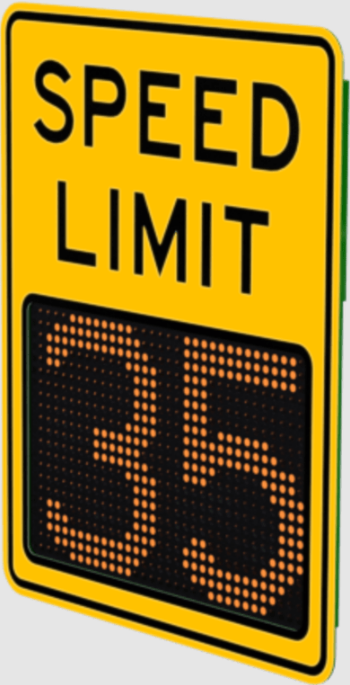

12″ Full Matrix (Portable) Radar Speed Sign – iQ1200

Part Number: M75-12DFB-PK0x

Summary

The iQ1200 Portable offers a 12″ (30.5 cm) high-visibility full-matrix LED display capable of showing both vehicle speed and custom messages such as “SLOW DOWN” or “TOO FAST.” Rated for readability up to 600 ft (182.9 m), this unit is designed for flexible deployment across multiple locations, making it ideal for enforcement, neighborhood safety programs, and temporary traffic calming.

Product Options

• M75-12DFB-PK01: iQ1200 Portable Radar Speed Sign – White – 30Ah Battery with Key
• M75-12DFB-PK02: iQ1200 Portable Radar Speed Sign – Fluorescent Yellow-Green – 30Ah Battery with Key
• M75-12DFB-PK03: iQ1200 Portable Radar Speed Sign – Orange – 30Ah Battery with Key
• M75-12DFB-PK04: iQ1200 Portable Radar Speed Sign – Yellow – 30Ah Battery with Key

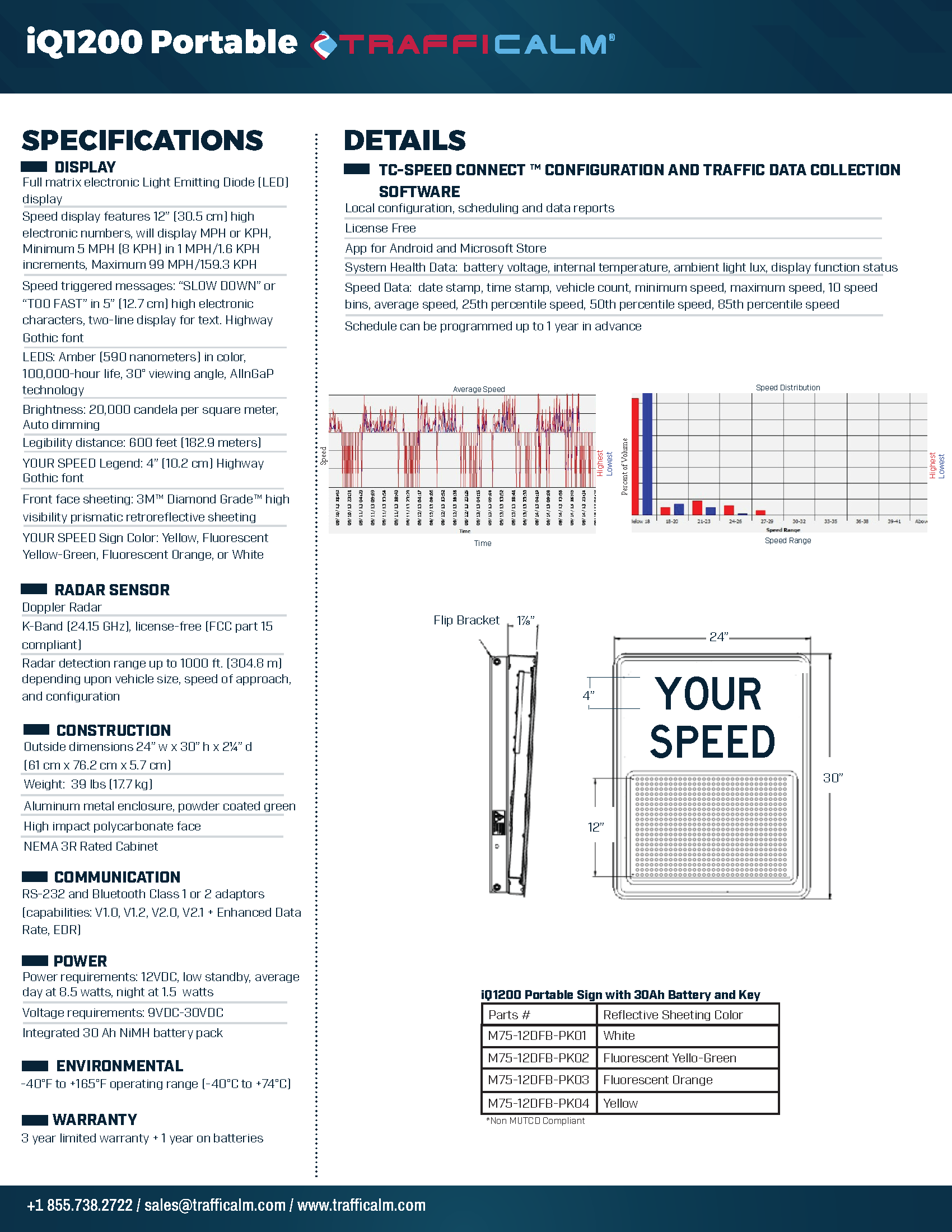

Specifications

Display

• Full-matrix LED display
• 12″ (30.5 cm) high electronic numbers
• Displays speeds from 5 mph (8 kph) to 99 mph (159 kph) in 1 mph (1.6 kph) increments
• Speed-triggered messages in approximately 5″ (12.7 cm) characters using a two-line layout
• Amber LEDs rated for 100,000 hours with a 30° viewing angle
• Brightness up to approximately 20,000 cd/m² with automatic dimming
• Legibility distance up to 600 ft (182.9 m)
• “YOUR SPEED” legend uses approximately 4″ (10.2 cm) Highway Gothic font
• High-visibility prismatic retroreflective face

Radar Sensor

• Doppler radar, K-Band (24.15 GHz)
• FCC Part 15 compliant
• Typical detection range up to 1,000 ft (304.8 m), depending on vehicle size and environment

Construction

• Dimensions: 24″ W × 30″ H × 2-1/4″ D (61 cm × 76.2 cm × 5.7 cm)
• Weight: approximately 39 lb (17.7 kg)
• Aluminum enclosure with powder-coated finish
• High-impact polycarbonate face
• NEMA 3R rated for outdoor use
• Includes quick-disconnect mounting bracket for rapid deployment

Communication

• RS-232 and Bluetooth compatible (Class 1/2)

Power

• Operates on nominal 12 VDC
• Integrated 30Ah battery pack (portable configuration)
• Built-in AC charger for recharging internal battery
• Low standby power consumption (approximately 8.5 W day, 1.5 W night)
• Operating voltage range: 9–30 VDC

Environmental

• Operating temperature range: −29 °F to +165 °F (−34 °C to +74 °C)

Warranty

• 3-year limited warranty on sign electronics
• 1-year warranty on battery

Why Choose the iQ1200 Portable?

• Full-matrix display capability in a portable, easy-to-deploy format
• Ideal for temporary deployments, rotating locations, enforcement, school zones, and neighborhood programs
• Custom message capability improves driver feedback and compliance
• High-visibility LED display ensures excellent readability in a wide range of conditions
• Integrated battery and quick-disconnect hardware make setup and relocation simple and fast
