Solar North: Side Mount – 150 Watt / 140 Ah

Part Number: M75-SOLAR-000N

MUTCD Sign Rings: If your controller is running firmware 401N or >, adjust brightness from 100% to 60%. Failure to do so will result in higher power draw and solar systems may fail.

Is my ring MUTCD?
There is a -M at the end of the model number for MUTCD compliant rings

Summary

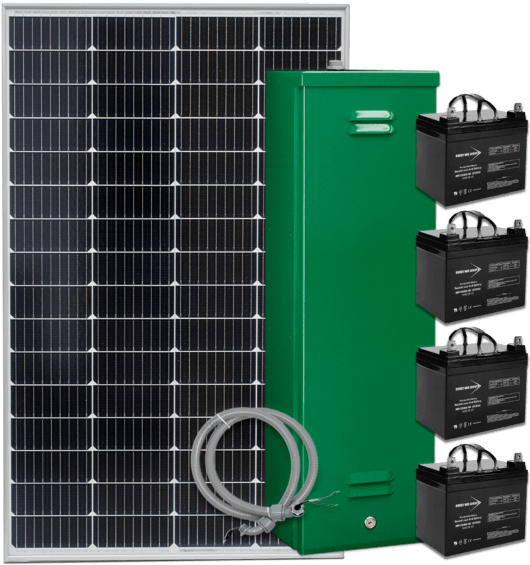

The Solar North Kit provides robust off-grid power for TraffiCalm radar speed signs using a 150-watt solar panel paired with a high-capacity 140 Ah battery system. Designed for northern climates and locations with reduced winter sunlight, this configuration supports extended runtime and reliable year-round performance. The complete package includes solar panel, controller, large battery housing, conduit-protected wiring, and heavy-duty mounting hardware for permanent and weather-resilient roadside installation.

Product Options

This solar kit is available in a single configuration under part number M75-SOLAR-000N.

Battery quantity, mounting components, and kit contents are fixed as listed in the specifications.

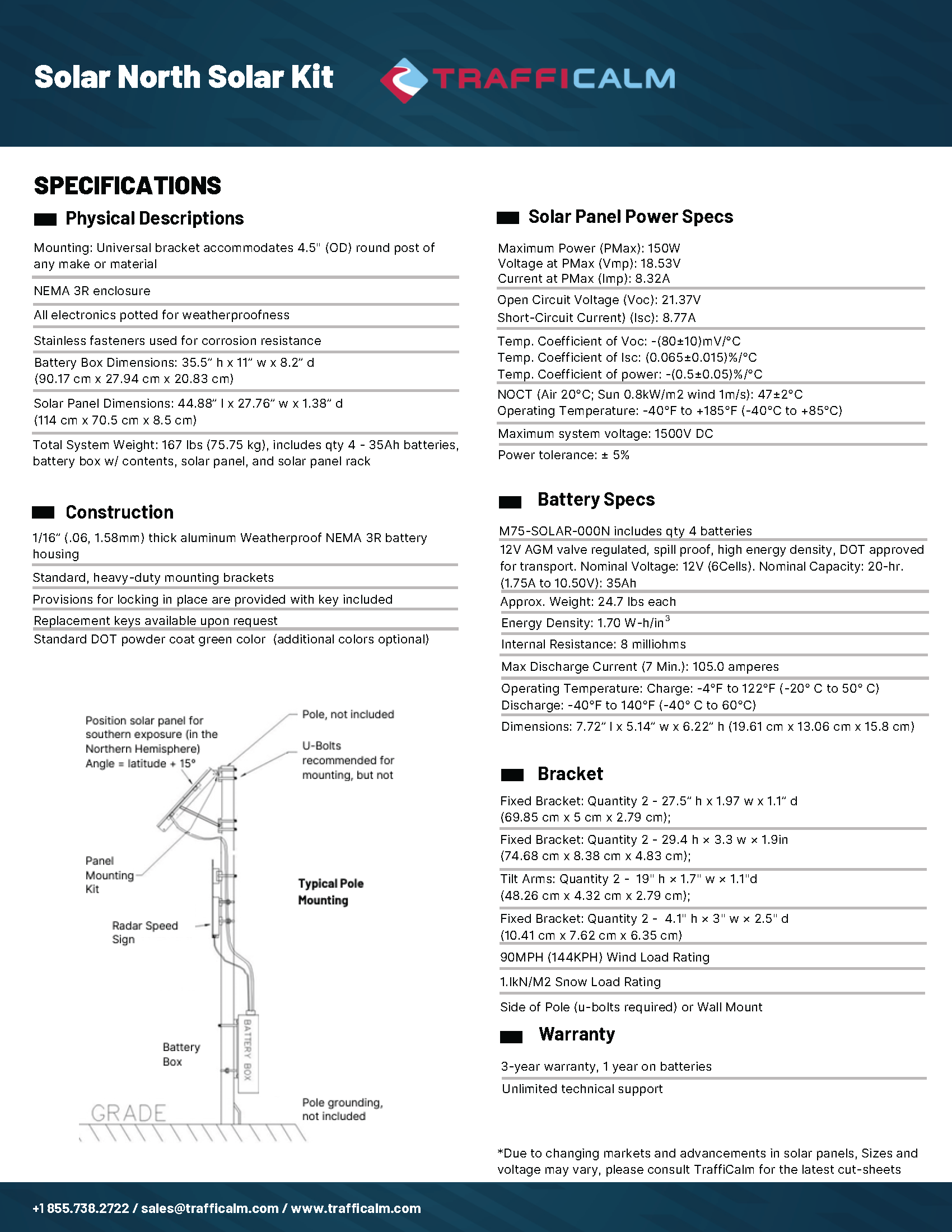

Specifications

Physical Descriptions

• Universal mounting bracket accommodates 4.5" OD round posts
• NEMA 3R weatherproof enclosure
• Electronics fully potted for moisture resistance
• Stainless steel fasteners for corrosion protection
• Solar panel dimensions: 44.88" L × 27.76" W × 1.38" D (114 cm × 70.5 cm × 8.5 cm)
• Battery box dimensions: 35.5" H × 11" W × 8.2" D (90.17 cm × 27.94 cm × 20.83 cm)
• Total system weight: 167 lb (75.75 kg), including four 35 Ah batteries, battery box, solar panel, and rack

Solar Panel Power Specs

• Maximum Power (Pmax): 150 W
• Voltage at Pmax (Vmp): 18.53 V
• Current at Pmax (Imp): 8.32 A
• Open Circuit Voltage (Voc): 21.37 V
• Short-Circuit Current (Isc): 8.77 A
• Temperature coefficient of Voc: −(80 ± 10) mV/°C
• Temperature coefficient of Isc: (0.065 ± 0.015)%/°C
• Temperature coefficient of power: −(0.5 ± 0.05)%/°C
• NOCT: 47 ± 2 °C
• Maximum system voltage: 1500 V DC
• Operating temperature: −40°F to +185°F (−40°C to +85°C)

Battery Specs

• Quantity 4 AGM batteries (35 Ah each)
• 12 V AGM, valve-regulated, spill-proof, high-energy density
• Nominal capacity (20-hr, 1.75 A to 10.50 V): 35 Ah each
• Internal resistance: 8 milliohms
• Maximum discharge current (7 min): 105 A
• Battery dimensions: 7.72" L × 5.14" W × 6.22" H (19.61 cm × 13.06 cm × 15.8 cm)
• Approximate weight: 24.7 lb each
• Operating temperature:
  • Charge: −4°F to 122°F (−20°C to 50°C)
  • Discharge: −40°F to 140°F (−40°C to 60°C)

Construction

• 1/16" (0.06", 1.58 mm) thick aluminum NEMA 3R battery housing
• Heavy-duty mounting brackets included
• Keyed lock provided; replacement keys available
• Standard green powder-coat finish (DOT color), additional colors optional

Bracket

• Fixed Bracket (Qty 2): 27.5" H × 1.97" W × 1.1" D (69.85 cm × 5 cm × 2.79 cm)
• Fixed Bracket (Qty 2): 29.4" H × 3.3" W × 1.9" D (74.68 cm × 8.38 cm × 4.83 cm)
• Tilt Arms (Qty 2): 19" H × 1.7" W × 1.1" D (48.26 cm × 4.32 cm × 2.79 cm)
• Additional Fixed Bracket: 4.1" H × 3" W × 2.5" D (10.41 cm × 7.62 cm × 6.35 cm)
• Wind load rating: 90 MPH (144 KPH)
• Snow load rating: 1.1 kN/m²
• Supports side-of-pole or wall-mount installation (U-bolts required)

Environmental

• Operating temperature range (system): −40°F to +185°F (−40°C to +85°C)

Warranty

• 3-year limited warranty on the solar kit
• 1-year warranty on batteries
• Unlimited technical support included

Why Choose the Solar North Kit – 150 W / 140 Ah?

• High-capacity 140 Ah system designed for northern regions and low-sunlight seasons
• Large 150 W solar panel maximizes energy capture in challenging conditions
• Complete kit includes panel, controller, oversized battery enclosure, brackets, and wiring
• Rugged aluminum NEMA 3R enclosure and potted electronics ensure long-term field reliability
• Multi-bracket system provides strong structural support and placement flexibility
• Compatible with TraffiCalm radar speed signs and standardized mounting hardware
• Designed and manufactured in the USA; compliant with Build America/Buy America requirements
